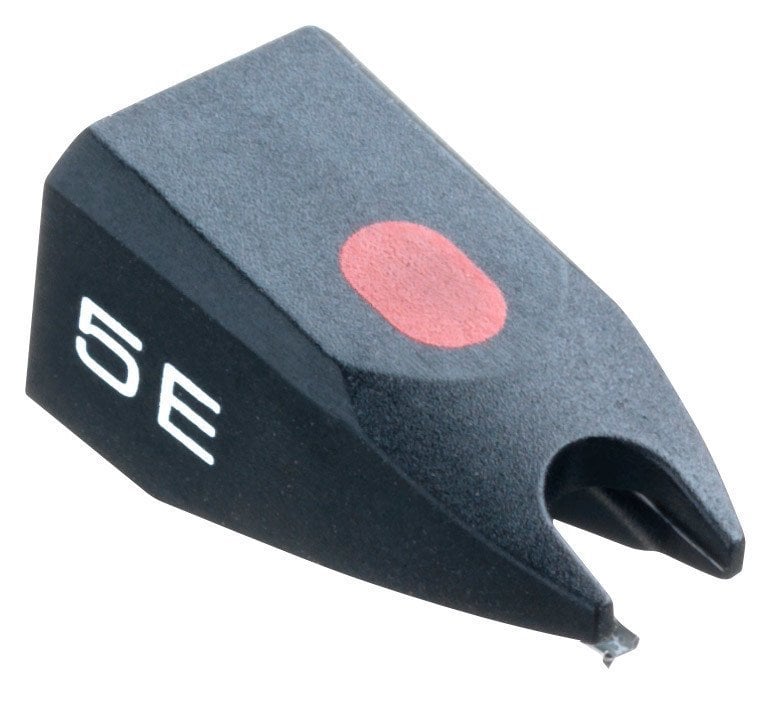

Ortofon Stylus 5 E yedek pikap iğnesi
Ortofon pikap iğneleri, hem DJ, hem de Hifi analog tüm pikaplara uygun iğneler üretir. Dünyanın en büyük pikap iğnesi üreticisi durumundadır. Üretim merkezi Danimarka'dır.
|
Technical data
|
|
| Output voltage at 1000 Hz, 5cm/sec. | 4 mV |
| Channel balance at 1 kHz | 2 dB |
| Channel separation at 1 kHz | 22 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at - 3dB | 20-25.000 Hz |
| Frequency response | 20-20.000 Hz ± 2 dB |
| Tracking ability at 315Hz at recommended tracking force *) | 65 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1,5-2,0 g (15-20 mN) |
| Tracking force, recommended | 1,75 g (17,5 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 750 Ohm |
| Internal inductance | 450 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 200-600 pF |
| Cartridge colour, body/stylus | Black/Black |
| Cartridge weight | 5 g |
